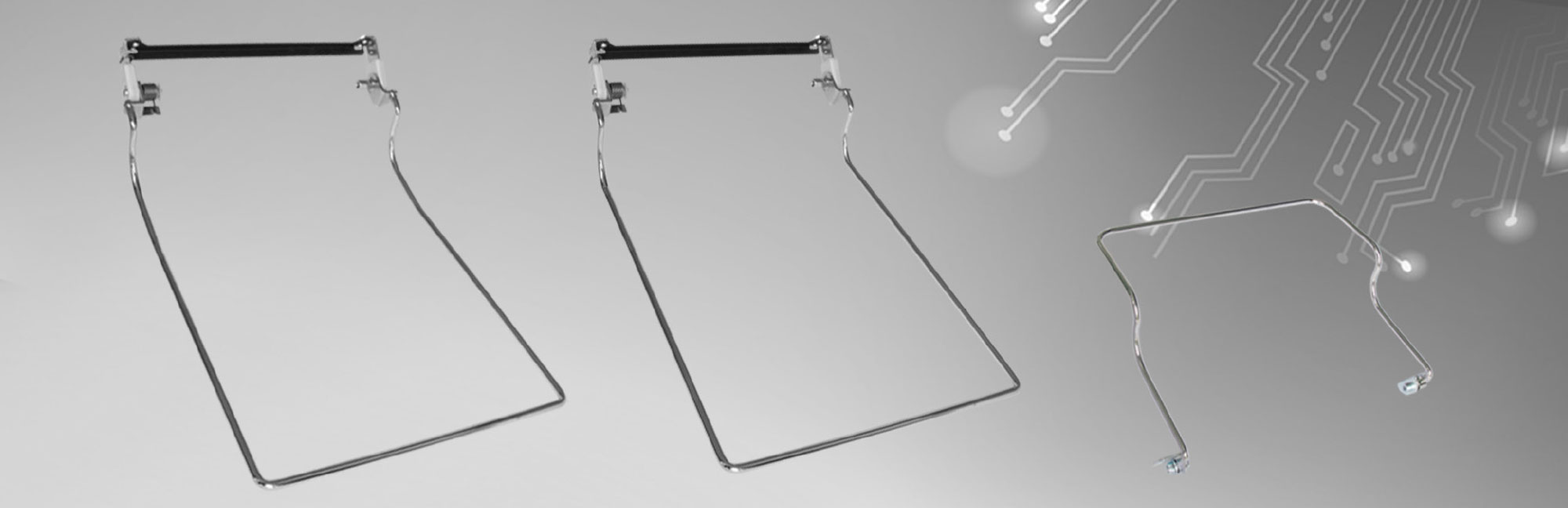

The headrest adjustments for armchairs and sofas offered in the confer range are available in different versions. They can be selected according to the individual design requirements of the upholstered furniture industry and as an adjustable headboard fi tting are an important part of the seat relax function. confer offers various headrest adjustments with different widths and the possibility of height adjustment in the armchair or sofa.

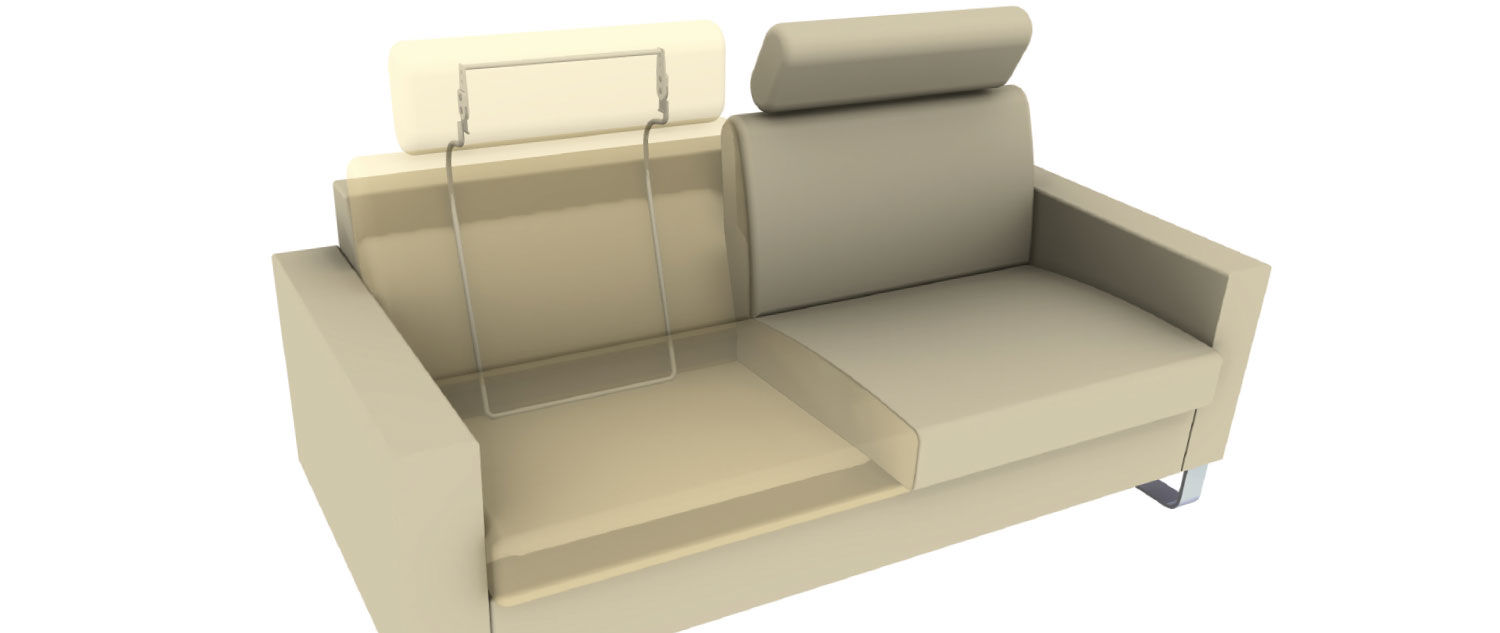

Ratchet headrest
This confer headrest is a relatively simple and therefore also inexpensive fi tting that can be used very variably by the user by simply plugging it into the back upholstery.
| Ratchet headrest | |
| Adjustable in 5 steps of 2° | Art-No. KS 03-000026 |
| Fixed | Art-No. KS 03-000007 |
Functions
- Adjustable top (also fi xed)
- Adjustable in 5 steps of 2°
- Inclination adjustment 30° + reset range
Technical features
- Height approx. 620 mm
- Width 400 mm
- Chromed or powder coated
- Very quiet clicking noises, maintenance-free
- High stability
Application and concept requirements
- Suitable for armchair and sofa back
Swivel armrest

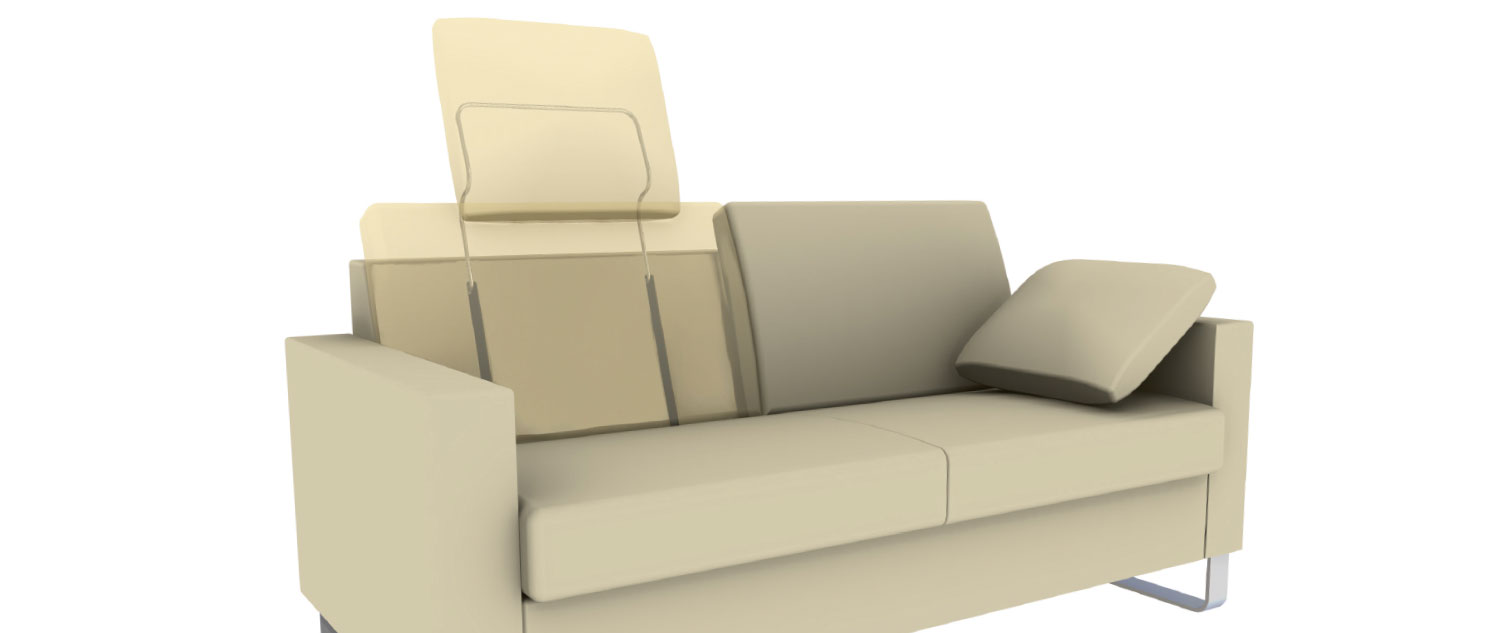

This swivel headrest bracket embedded in the sofa back offers a simple and effective solution to convert armrest cushions into comfortable headrests in just a few steps. The complete “sinking” of the bracket in the back of the sofa allows a harmonious sofa design and avoids disruptive interruptions in the design.
| Swivel armrest | |
| Fully retractable | Art-No. KS 02-012700 |
Functions
- Manual swiveling approx. 180°
- Completely immersed in the back of the sofa
Technical features
- Binder-Width 380 mm
- Distance pivot point to top edge approx. 320 mm
- Pivots plastic-bearing, slightly sticking
- Steel frame, high-gloss chrome-plated surface
Application and concept requirements
- Designed for sofas with loose back cushions
- Loose arm section cushions with pockets for headband brackets
- Upper back frame thickness at least 50 mm
