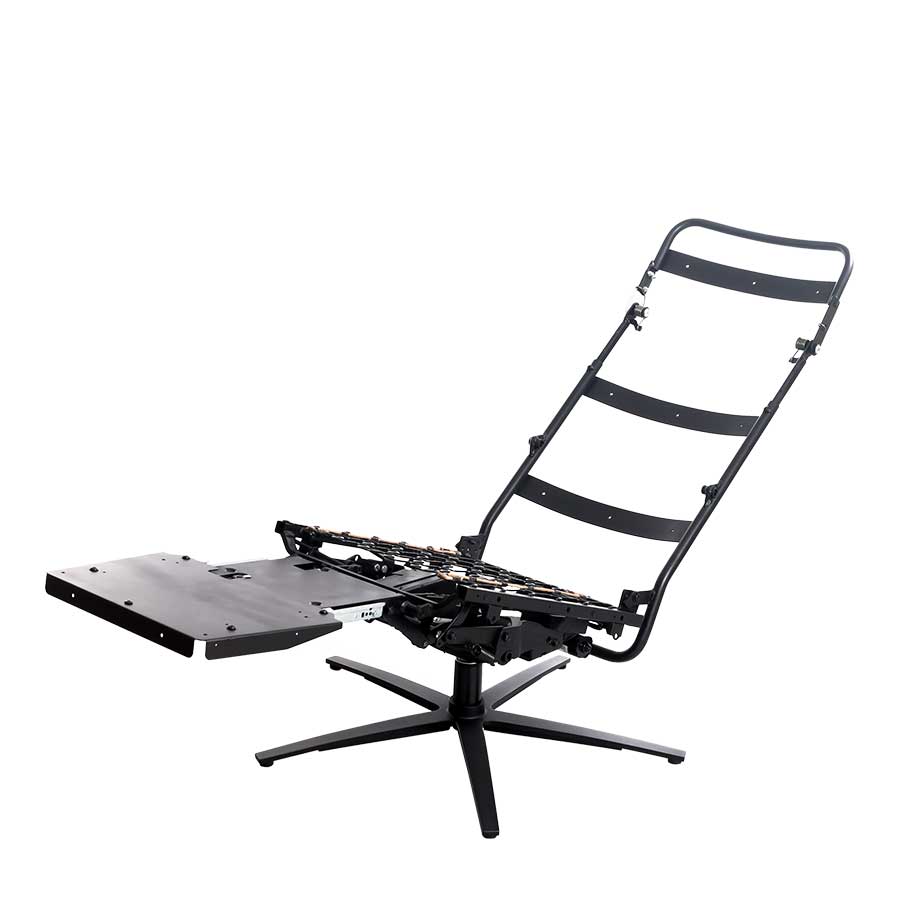

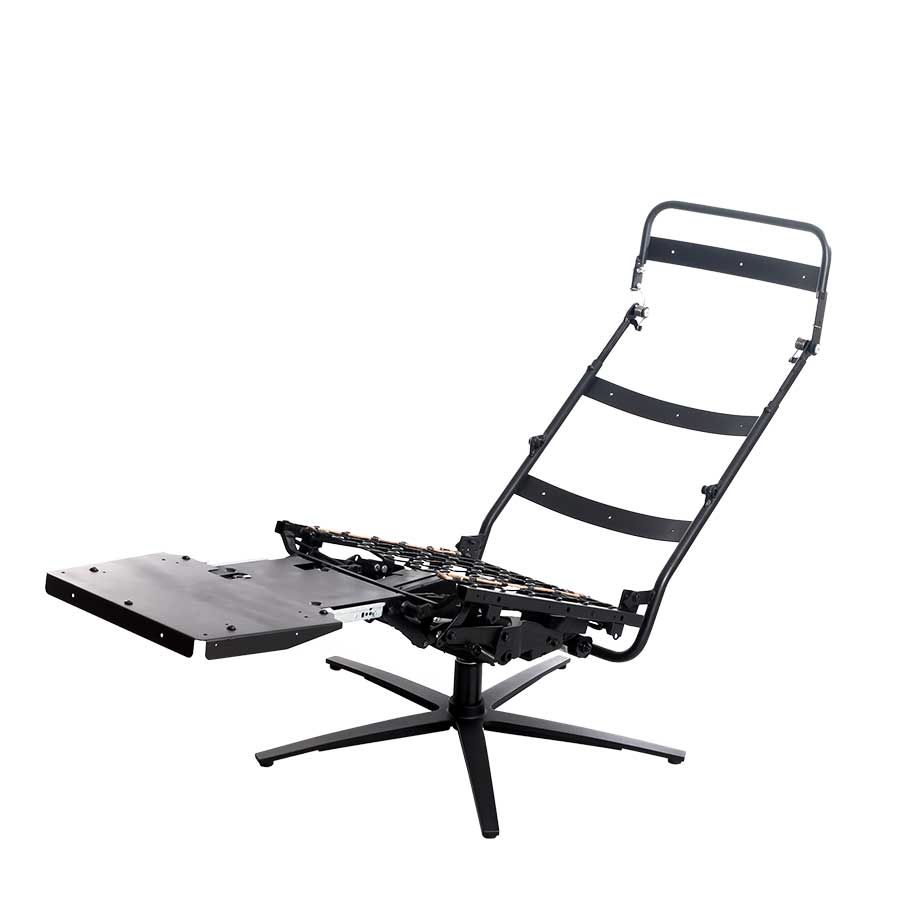

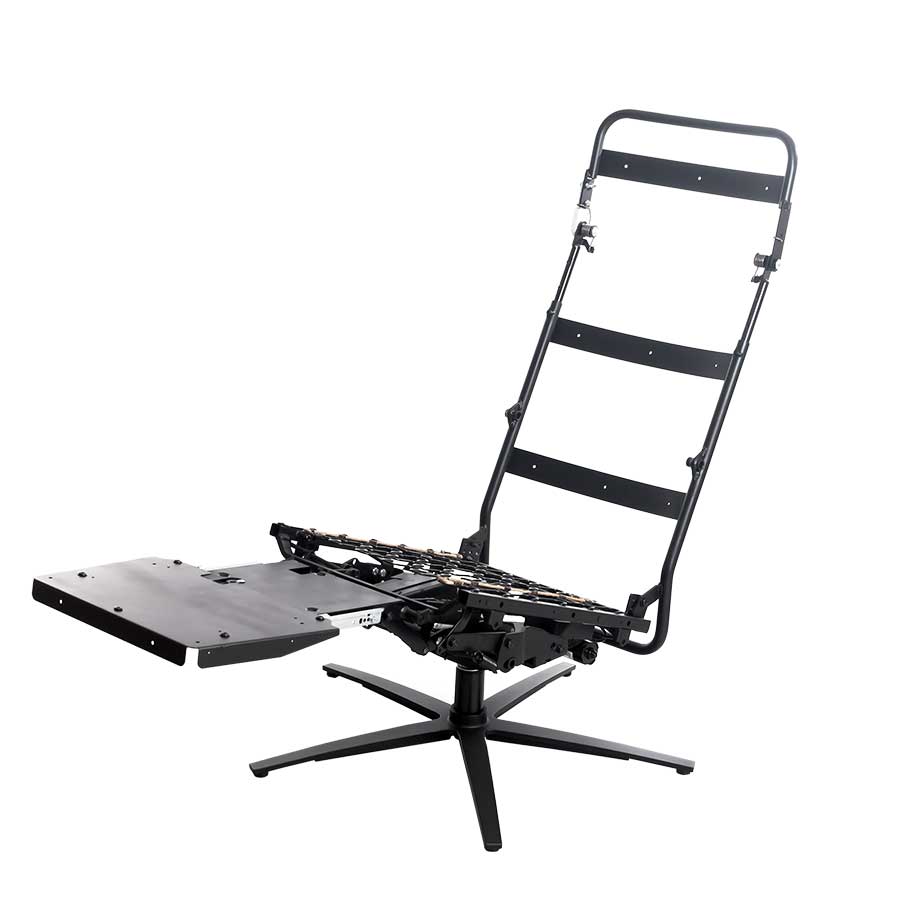

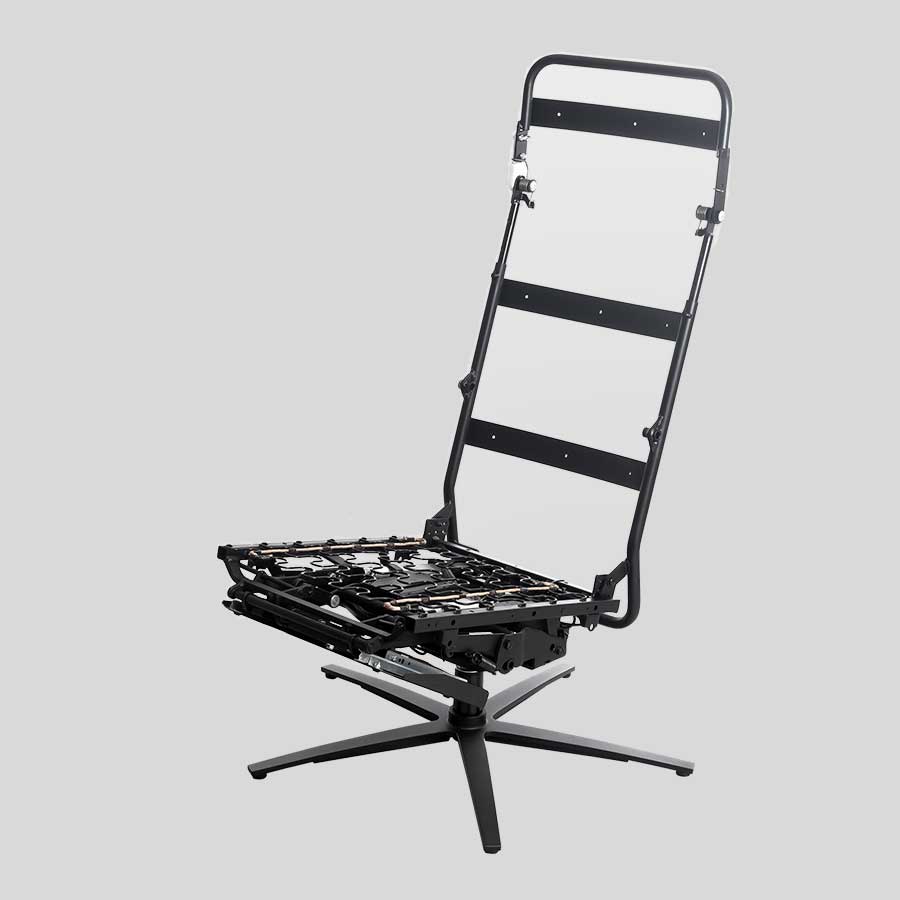

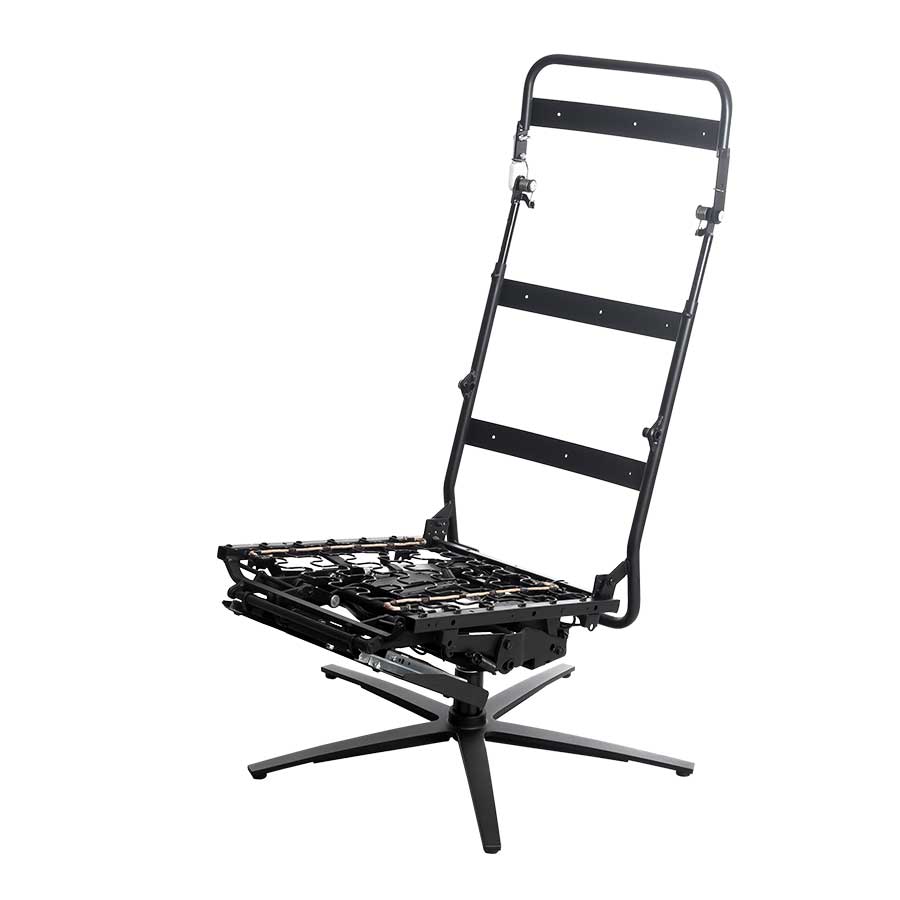

Armchair System RS 71 Proxy

Complete relax system with stepless, separate adjustment of leg rest and back with heart-balance function

Functions

Back and leg rest can be adjusted separately
Folding foot section under the seat
Headrest continuously adjustable by motor, alternatively manually with ratchet gear
System tilt function
Heart-balance function
Motor drive
Triggered by built-in button or hand switch with digital control for mains or battery operation

Variants

Three back heights, three seat depths
Suitable for narrow seating positions and conical seat shapes
Center part cylindrical or conical with different heights
Free design options for side parts and armrests
Fixed, open and co-moving armrests
Die-cast star base, plate feet (ﬂ at and lens plates) and other foot shapes with different surfaces: powder-coated / RAL colours, brushed stainless steel

Technology

All pivot points are wear-resistant, plastic-mounted
Steel tube and sheet steel powder-coated / primed
Wavy curved springs, mounted in the seat frame
